Length 40~200mm Stainless Steel Bolt Hex Head Diameter M22 DIN 933 Standard

Shenzhen Bede Mold Co., Ltd
Contact Now

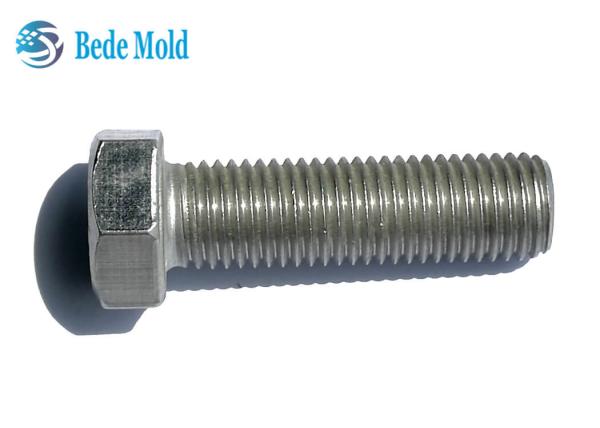

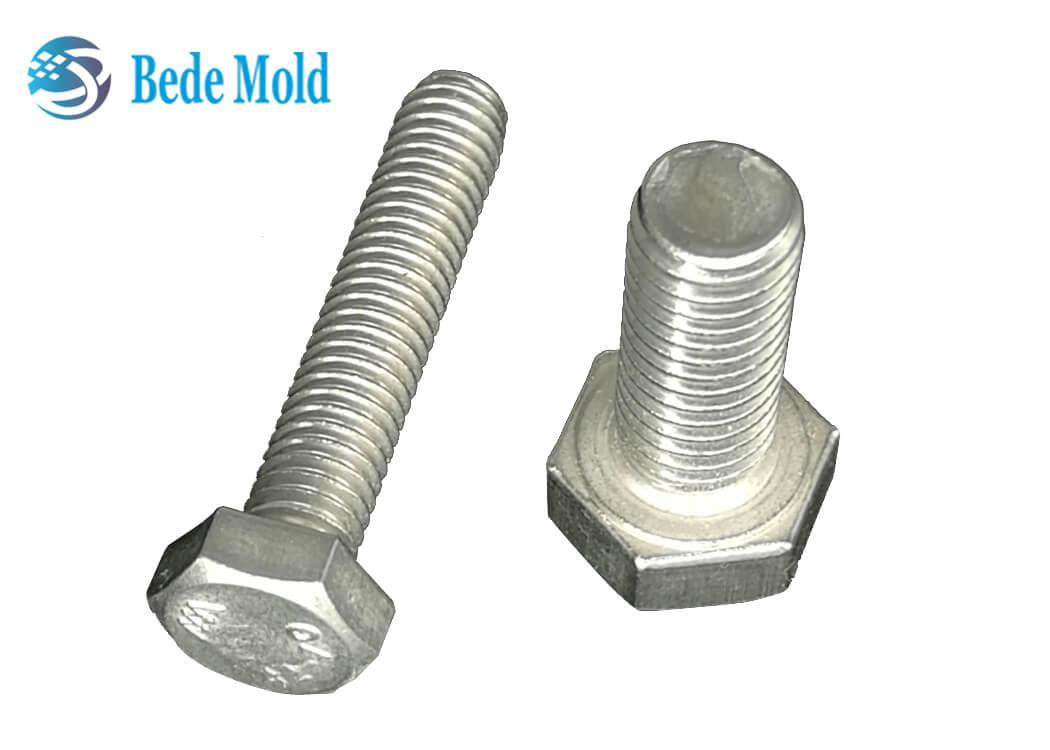

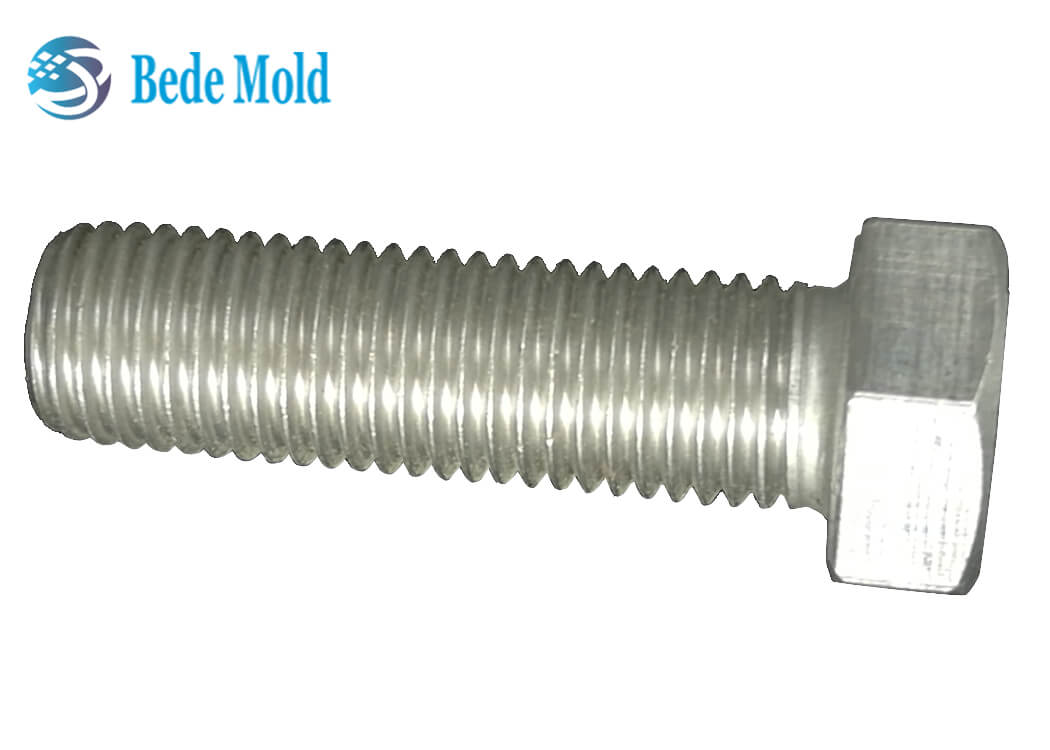

Length 40~200mm Stainless Steel Bolt Hex Head Diameter M22 DIN 933 Standard

  • 1
  • 2
  • 3

Brand Name : BEDE

Model Number : A2-70

Certification : RoHS

Place of Origin : China

MOQ : 1 carton

Price : USD 0.875~2.575 per pieces

Payment Terms : Western Union, T/T, Paypal

Supply Ability : 500000 pieces per week

Delivery Time : 2 days for retail, 5~15 days for wholesale

Packaging Details : Paper Cartons

Products Name : Hex Head Bolts

Materials : Stainless steel SUS304

Tensile Strength : 700MPa

Size : M22

Length : 40~200 mm

OED/ODM : welcome

Contact Now

A2-70 Stainless Steel bolt Hex Head Bolts Diameter M22 Length 40~200 mm DIN 933 Standard

Description

  • Products Name: Stainless steel bolt
  • Driver type: Hex Head
  • materials: SUS304
  • Tensile Strength: >700 MPa
  • Executive standard: DIN 933
  • Size: M22
  • Length: 40~200mm

Specification of hex head bolts fully threaded.pdf

Length 40~200mm Stainless Steel Bolt Hex Head Diameter M22 DIN 933 Standard

Date details

Length 40~200mm Stainless Steel Bolt Hex Head Diameter M22 DIN 933 Standard

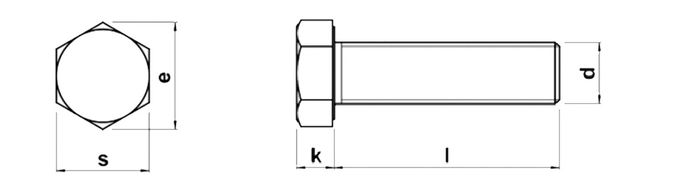

d TPI (thread per inch) K max / mm S / mm e / mm L
M22 2.50 14.0 32 35.72 as follows

Length and price

  • The following table is infomations of M22 Hex head bolts.
  • For other sizes, please visit our website or contact us via whatsapp +8615915396878
  • For the price of SUS 316 stainless steel materials, It is 1.4 times of this price, the packaging specifications are the same.
  • For the customized size, pls let us know the key data as show in the Date details
  • We also have the high-strength bolts of carbon steel materials, 8.8 ~ 12.9 grade, welcome to contact us if you are interest
Length / mm 40 45 50 55 60 65 70
Qty. per carton 150 120 120 120 108 108 90
Unit piece / USD 1.75 1.83 1.89 2.0 2.12 2.21 2.33
Carton Price / USD 262.5 219.6 226.8 240 228.96 238.68 209.7

Length / mm 75 80 85 90 95 100 110 120
Qty. per carton 90 90 90 72 72 72 60 60
Unit piece / USD 2.43 2.58 2.62 2.74 2.84 2.94 3.18 3.37
Carton Price / USD 218.7 232.2 235.8 197.28 204.48 211.68 190.8 202.2

Length / mm 130 140 150 160 170 180 190 200
Qty. per carton 72 72 72 60 50 50 50 50
Unit Price / USD 3.56 3.8 3.99 4.18 4.38 4.64 4.86 5.15
Carton Price / USD 256.32 273.6 287.28 250.8 219 232 243 257.5


Length 40~200mm Stainless Steel Bolt Hex Head Diameter M22 DIN 933 Standard

How to buy

  • The MOQ for each length is 1 Carton,
  • 2~10 cartons, 10% off
  • 10 carton and more, 20% off
  • 100 cartons and more , 30% off
  • 500 cartons and more , 40% off
  • 1000 cartons and more , 50% off
